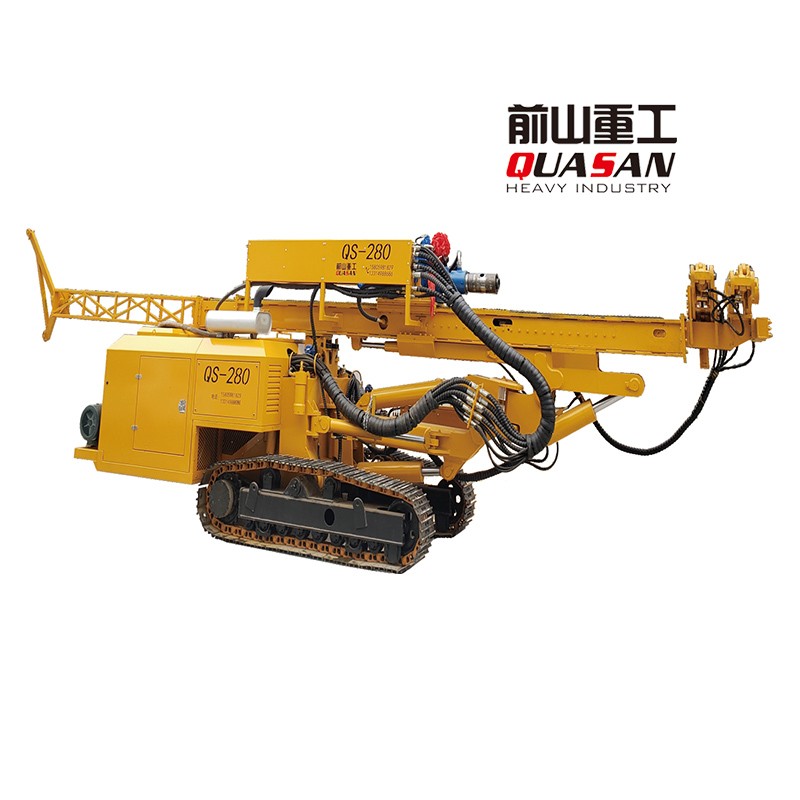

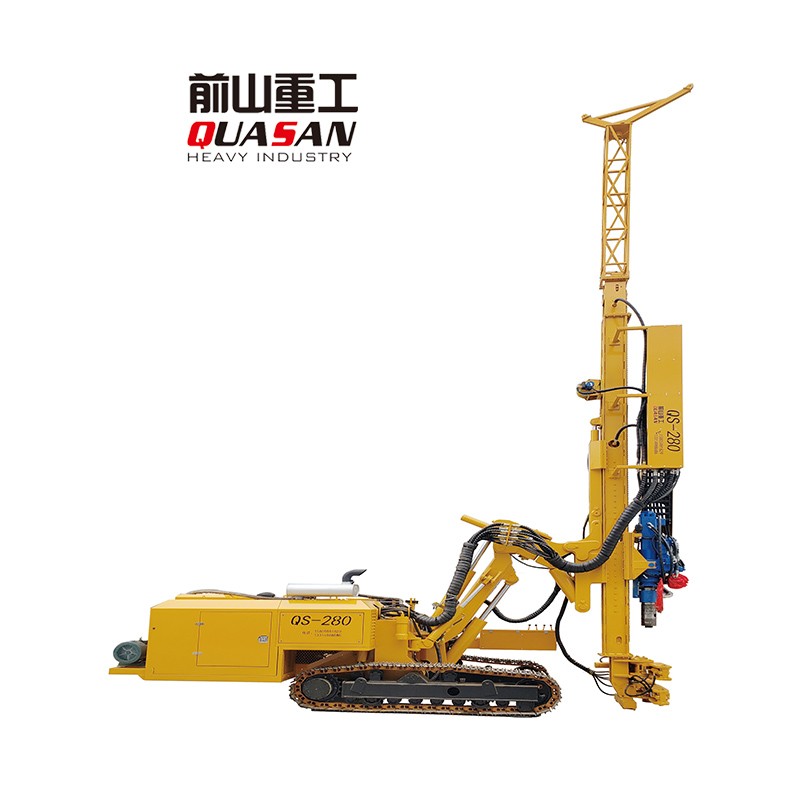

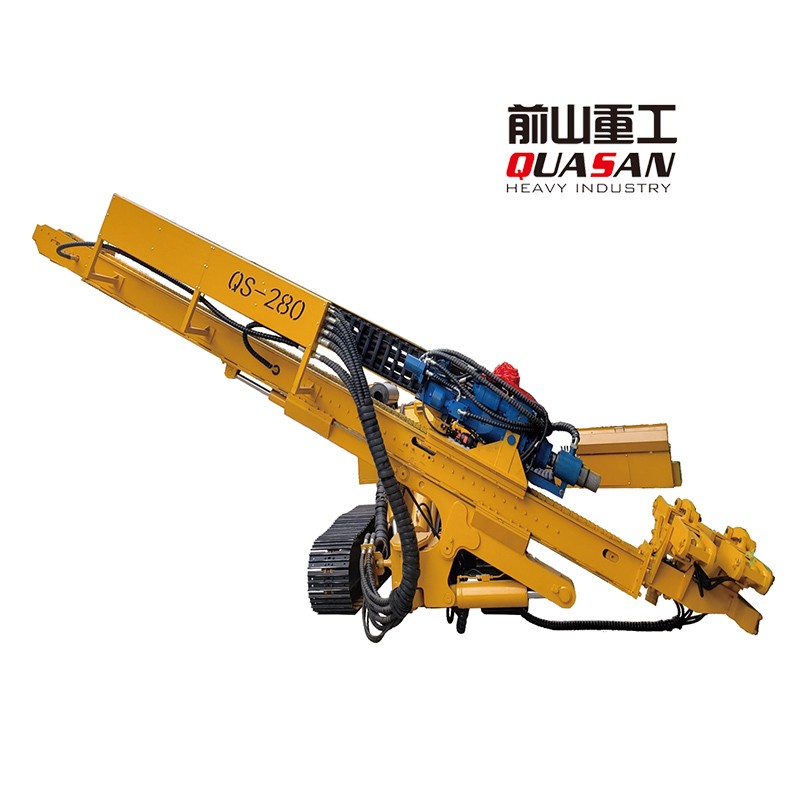

QS-280 Anchor drilling rigs

QS-280 Anchor drilling rigs are suitable for anchoring projects on high slopes and rock masses. They are also applicable to the construction of deep foundation pit support in urban areas, anti-buoyancy anchor bolts, foundation grouting reinforcement holes, blasting holes in blasting projects, high-pressure jet grouting piles, tunnel pipe roof support holes, etc. With slight modifications to the power head, omnidirectional construction can be easily achieved. Main drilling methods include: conventional down-the-hole hammer drilling, casing drilling, and auger drilling.

Quasan QS-280 Anchor drilling rigs

TechnicalParameters

Power type:Diesel

TheMaximumparallelheight3800mm

Drill DiameterMax280mm

DrillDepth Max120m

Rated power 192KW

Operating pressure280 bar

Drifter HB520

TorqueMax7500-15000-16000Nm

Revolutions Max84-132rpm

Impact Energy 800-900 Nm

PercussionFrequency1800-2400bpm

Feed/retractionforce55/110kN

Fastfeed/retractionrate58/29m/min

Feed stroke48m

Groundpressure49N/sq-cm

Towing force130kN

Total weight 10 ton

Transportationsize:L7800*W2260*H2700(mm)

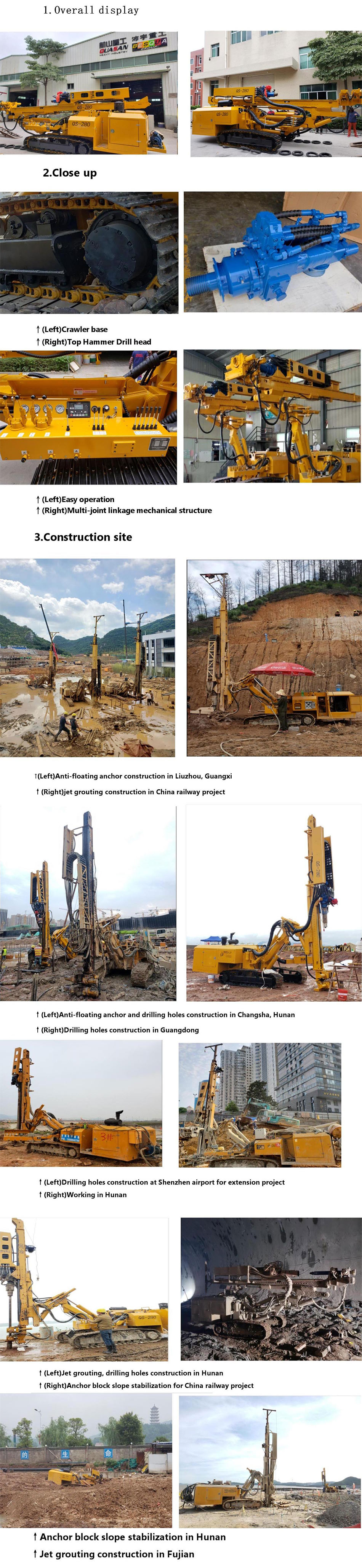

QS-280 Anchor drilling rigs case
