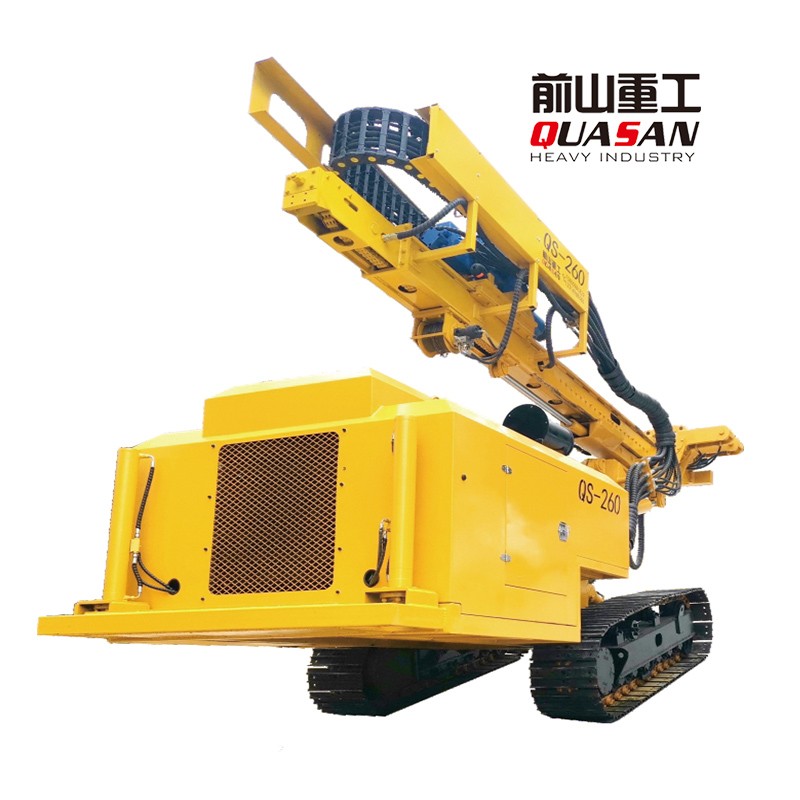

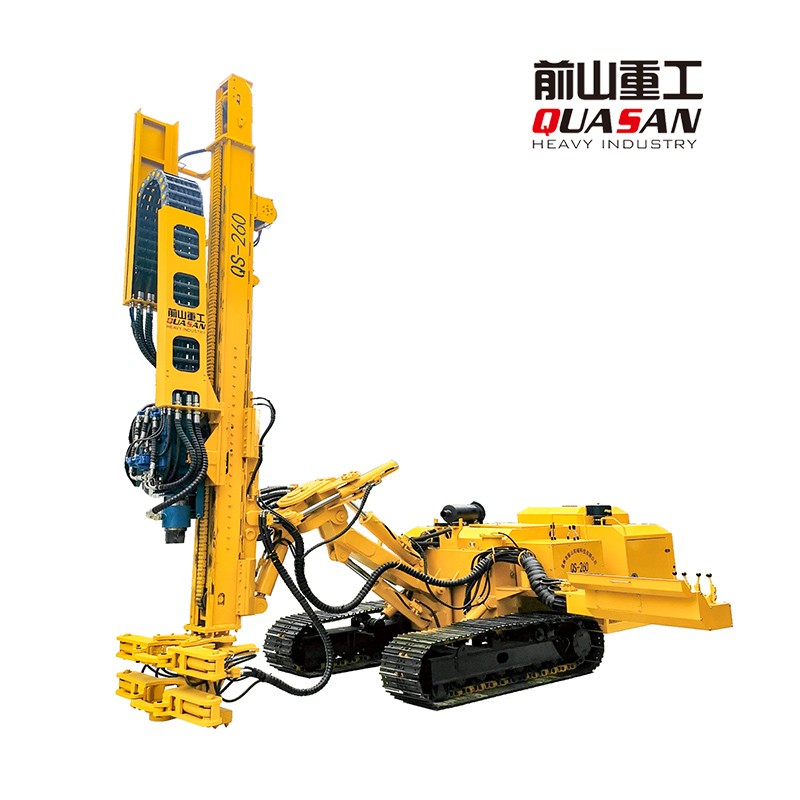

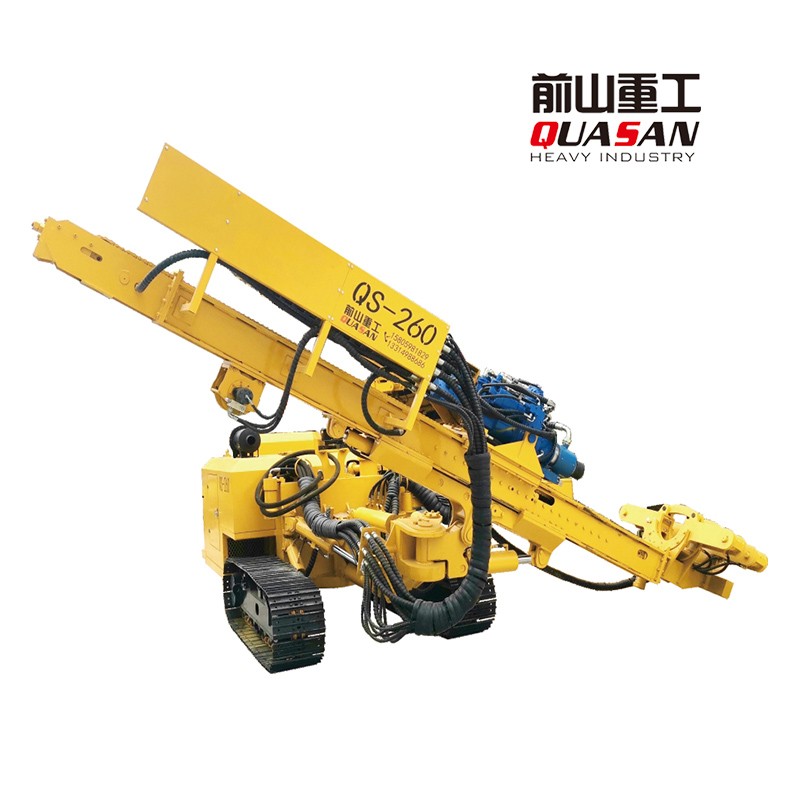

QS-260 foundation drilling rigs Equipment offers an extensive selection of drilling and grouting equipment from leading manufacturers throughout the world.
QS-260 foundation crawler drill Technical Parameters
TheMaximumparallel height3500mm
Drill Diameter Max 250mm
Drill Depth Max 100m
Engine type:6BTA5.9-C180
Rated power 132KW
Engine auxiliary power30kw.
Operating pressure 280 bar.
Drifter HB50OB
Torque Max 7500-15000N.m
Revolutions Max 84-128rpm
Impact Energy 800 N.m
Percussion Frequency 1800-2400bpm
Feed stroke:4.0m
Ground pressure:4.7N/cm
Fast feed/retractionrate58/29m/min
Feed stroke 4.0m
Ground pressure 4.7N/sq-cm2
Towing force 130kN
Total weight 10 ton
Transportation size:L6800*W2200*H2600(mm)
